MOT Groove Slider Recommended Configuration
Nov 20,2024 | 趣玩潮品EDC

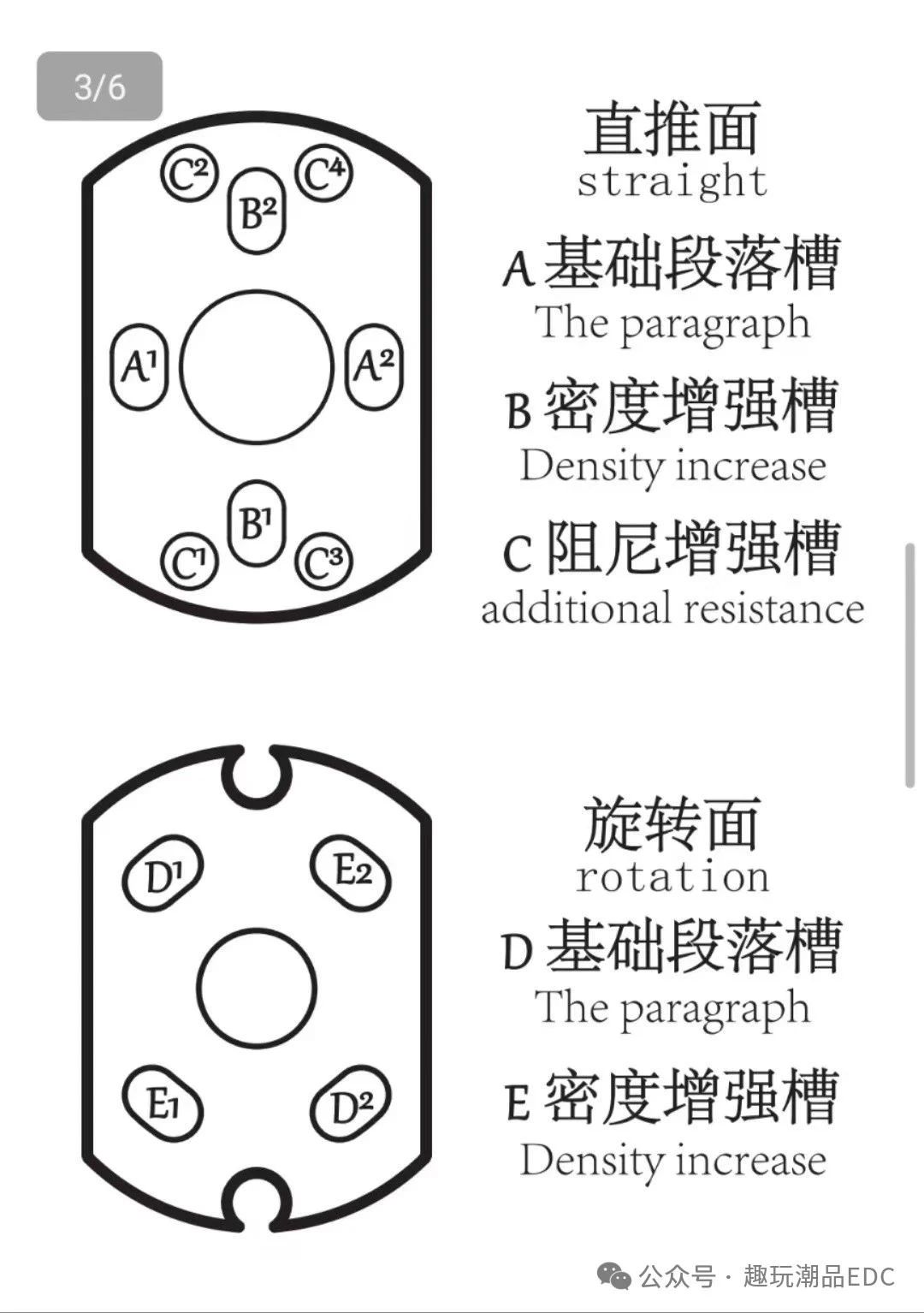

Titanium/Zirconium Rabbit MOT Groove Configuration
Rotation: Four springs in total
D1D2: 0.3*2.9*5 phosphor bronze spring + 3mm silicon nitride
E1E2: 0.25*3*5 Reda spring + 3mm silicon nitride
(If it is a titanium Groove, the Reda spring needs to be changed to 0.25*3*5 gold-plated piano steel spring, otherwise the direct push grinding body phenomenon will occur)
Direct push: Four springs in total
B2 and A1: Reda 0.25*3*5 or 0.25*2.8*5 + 3mm silicon nitride
C4 and C1: 0.3*2.9*4+3mmPOM or zirconium oxide
(The direct push in the video is 0.25*2.8*5 spring)
（Thanks to 趣玩潮品EDC for providing the configuration solution）
