Description
Brand new mechanical structure
Anti-slip design
classic logo design

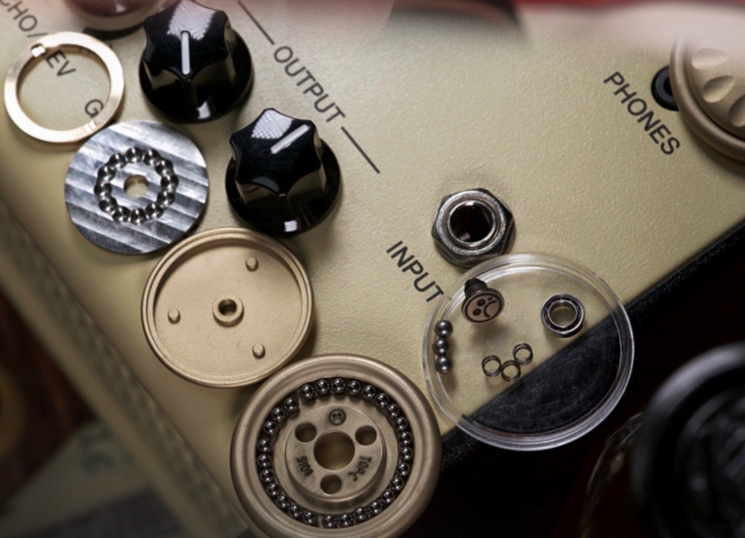

（dismantling diagram）
1.body top cover

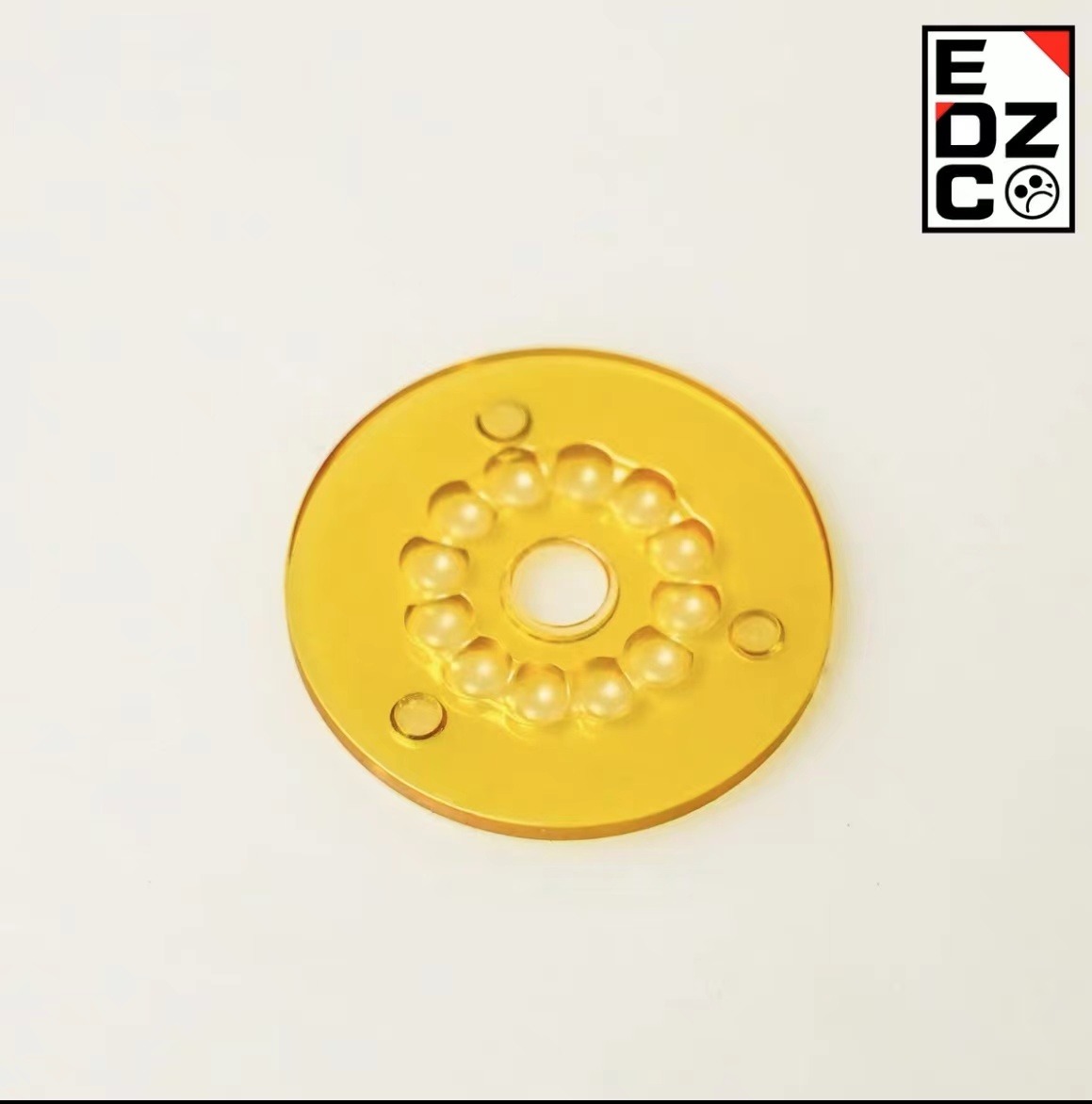

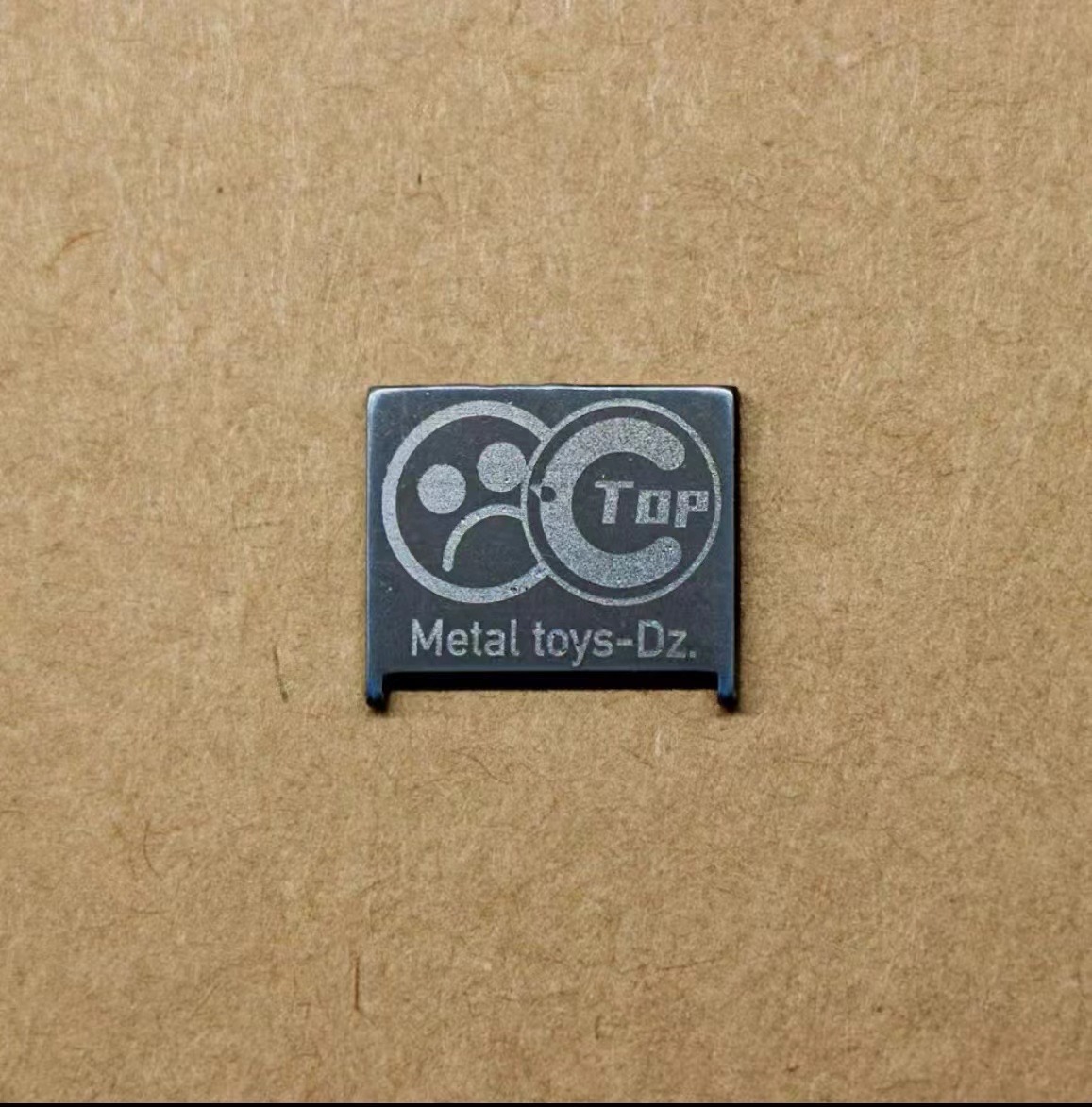

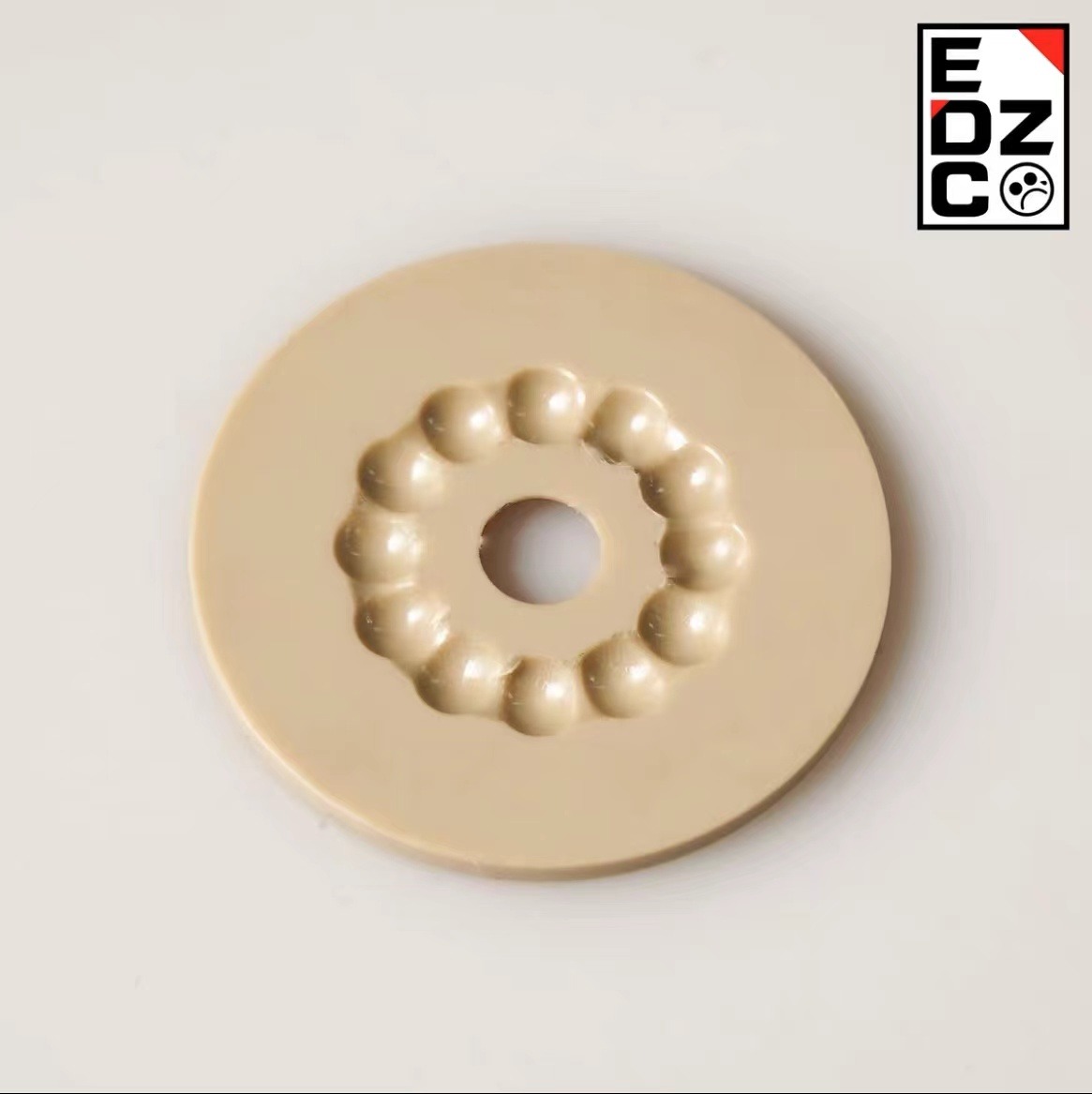

2.Replaceable slot board
3.Paragraph Balls
4.GGuide Ball Shaft Lock
5.guide ball

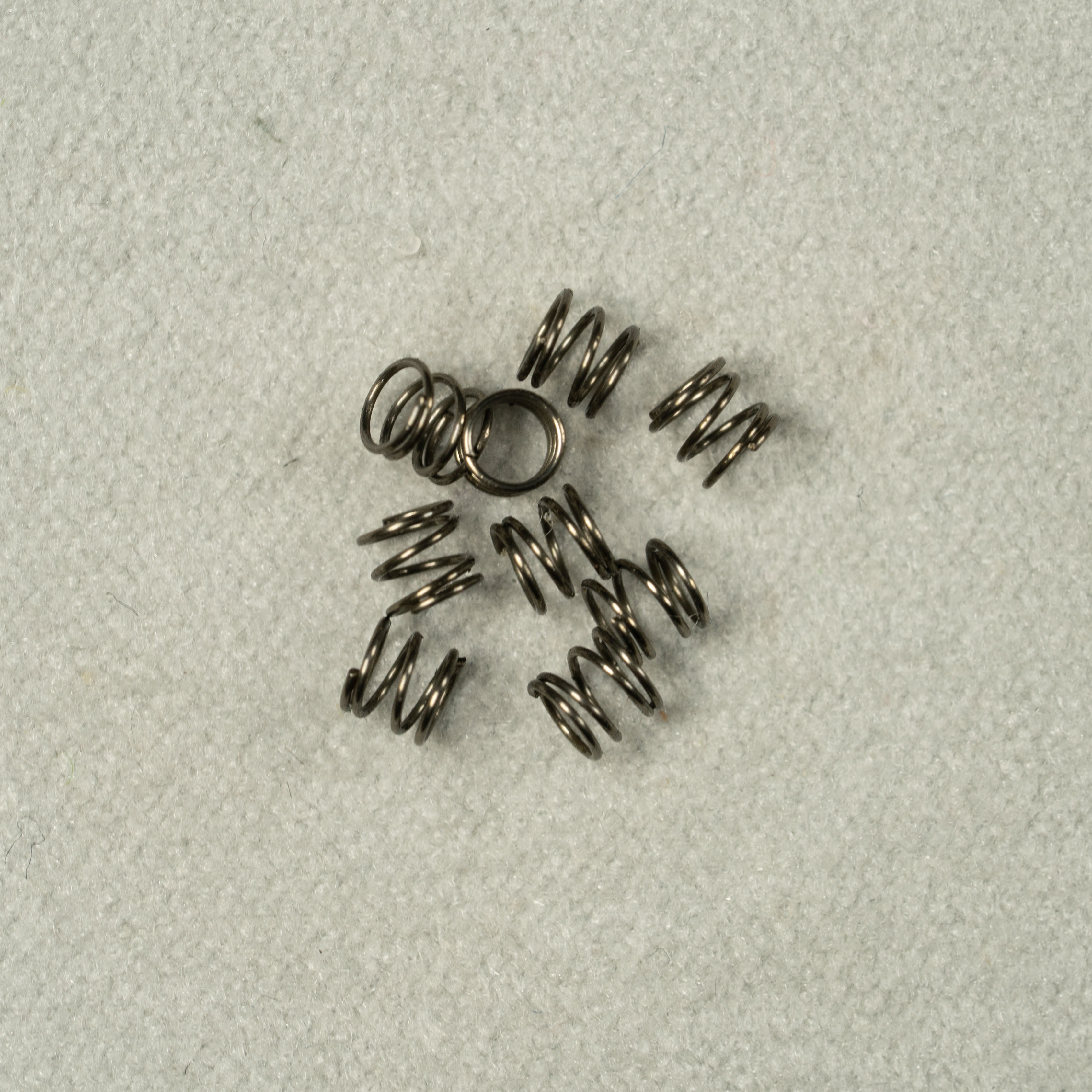

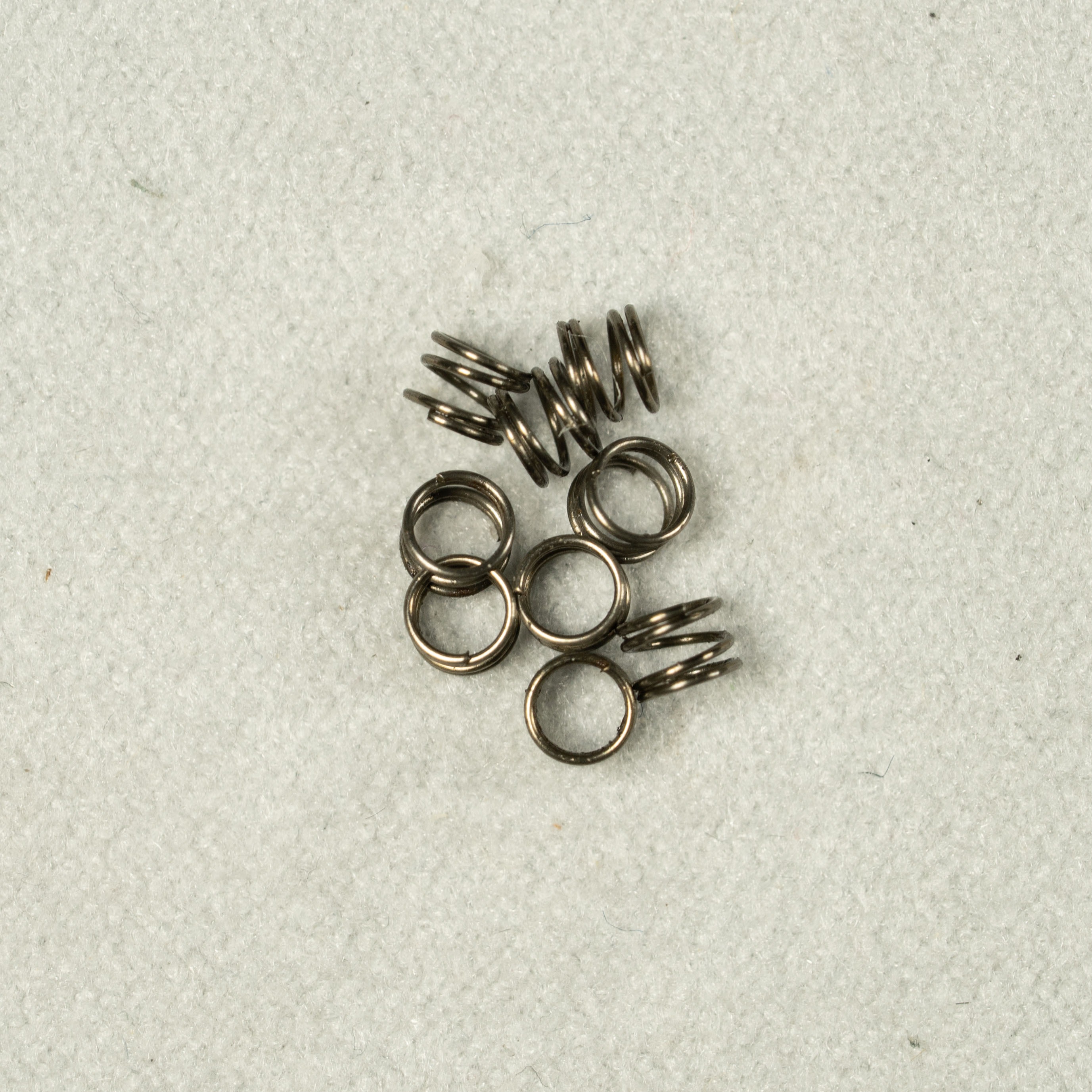

6.support spring
7.main body tray

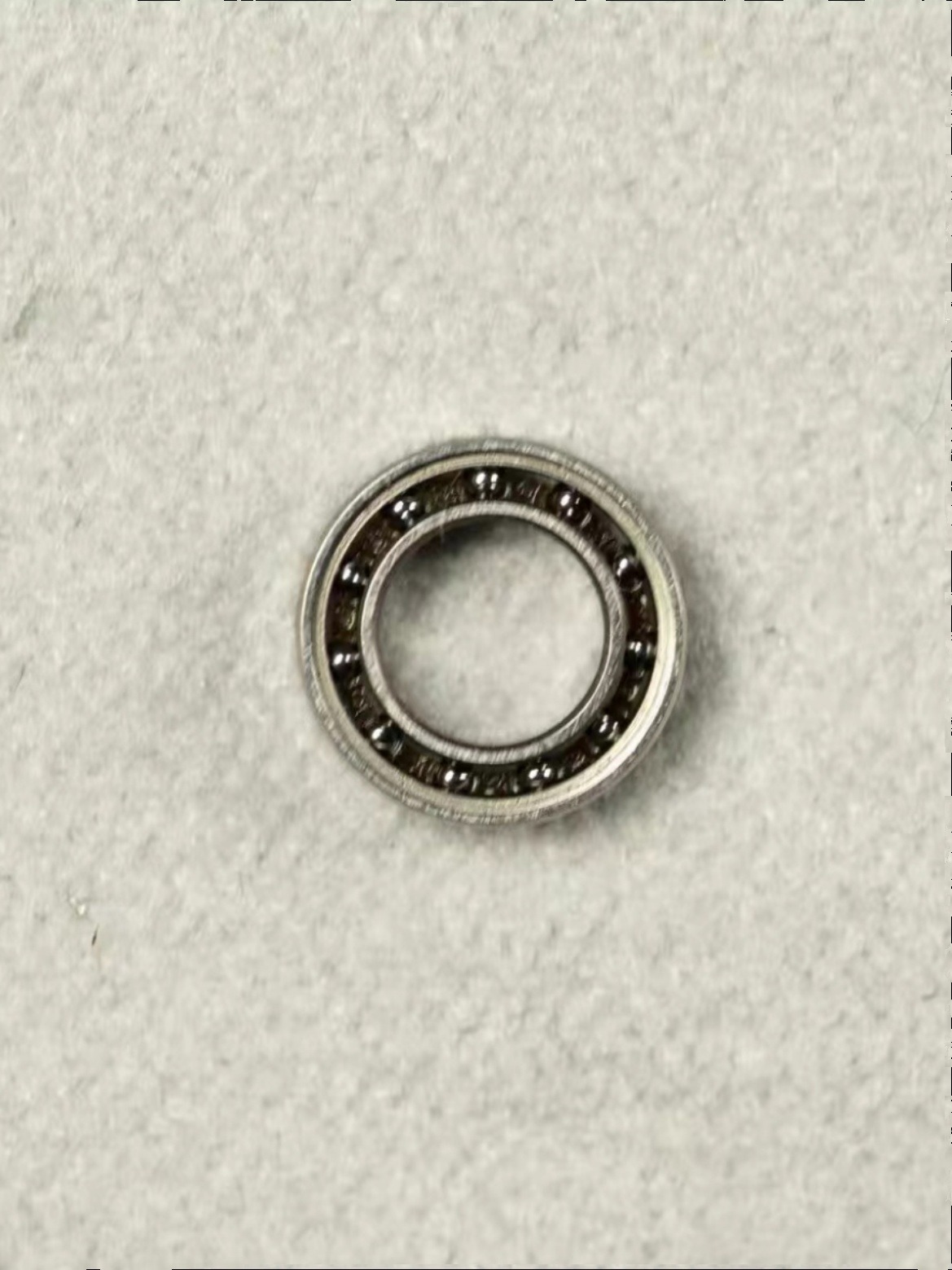

8.bottom bearing

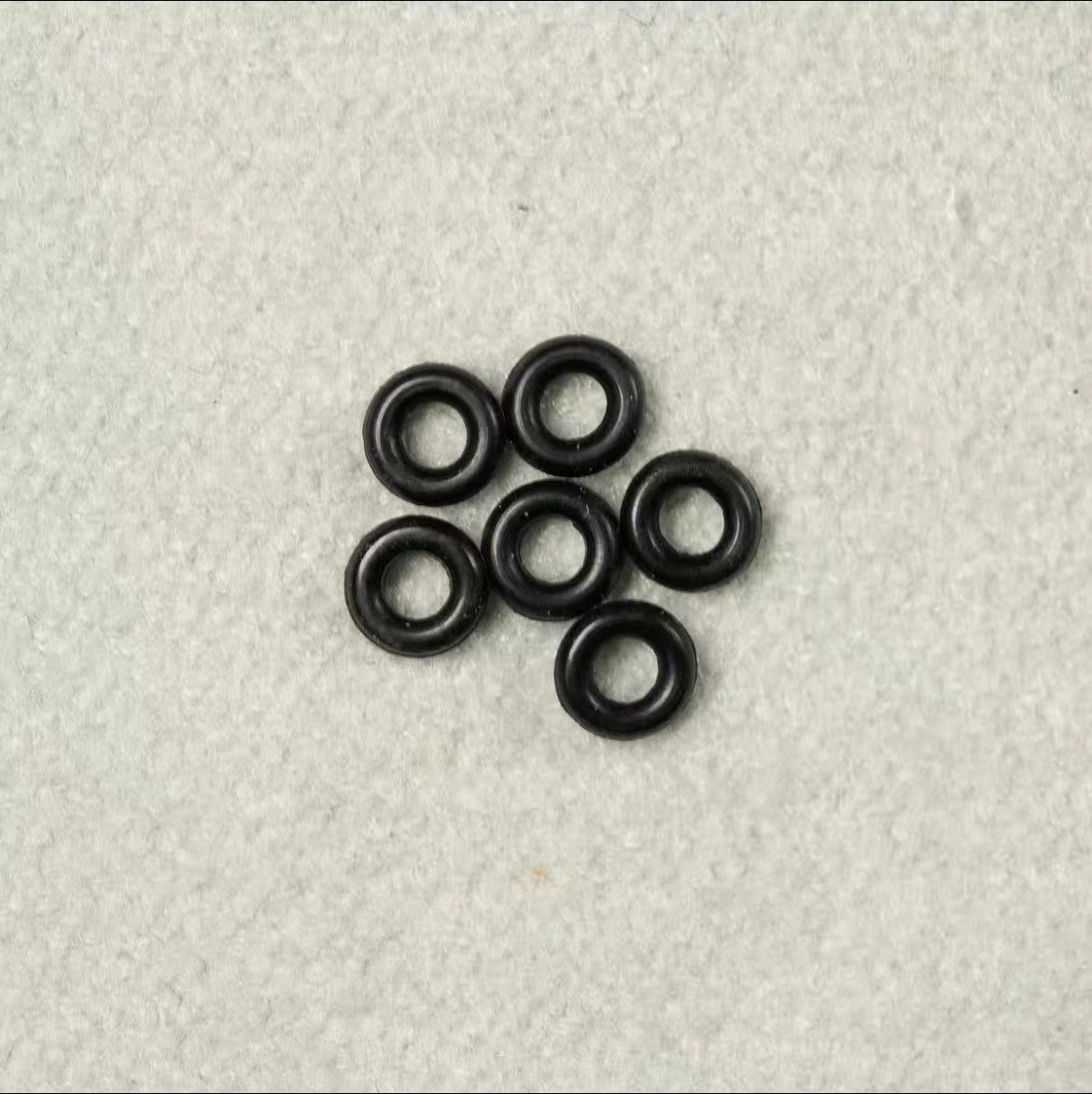

9.damping ring
10.Bottom locking screw
Installation order
1. Install part 5 (guide ball) to the corresponding position of 7 (main body tray)
2. Use 4 (GGuide Ball Shaft Lock) to lock 5 (guide ball) already installed on 7 (main body tray)
3. Install 6 (support spring) in the spring mounting hole of 7 (main body tray), then put 3 (Paragraph Balls) on the spring
4. Install 2 (Replaceable slot board) in 1 (body top cover)
5. Install 8 (bottom bearing) in the bearing hole of 7 (main body tray)
6. Install the 10 (Bottom locking screw) in the 8 (bottom bearing) hole
7. Assemble the main body top cover kit and main body kit, press 10 (Bottom locking screw) and rotate clockwise to complete the installation
Size Specifications
33.5MM*8.1MM

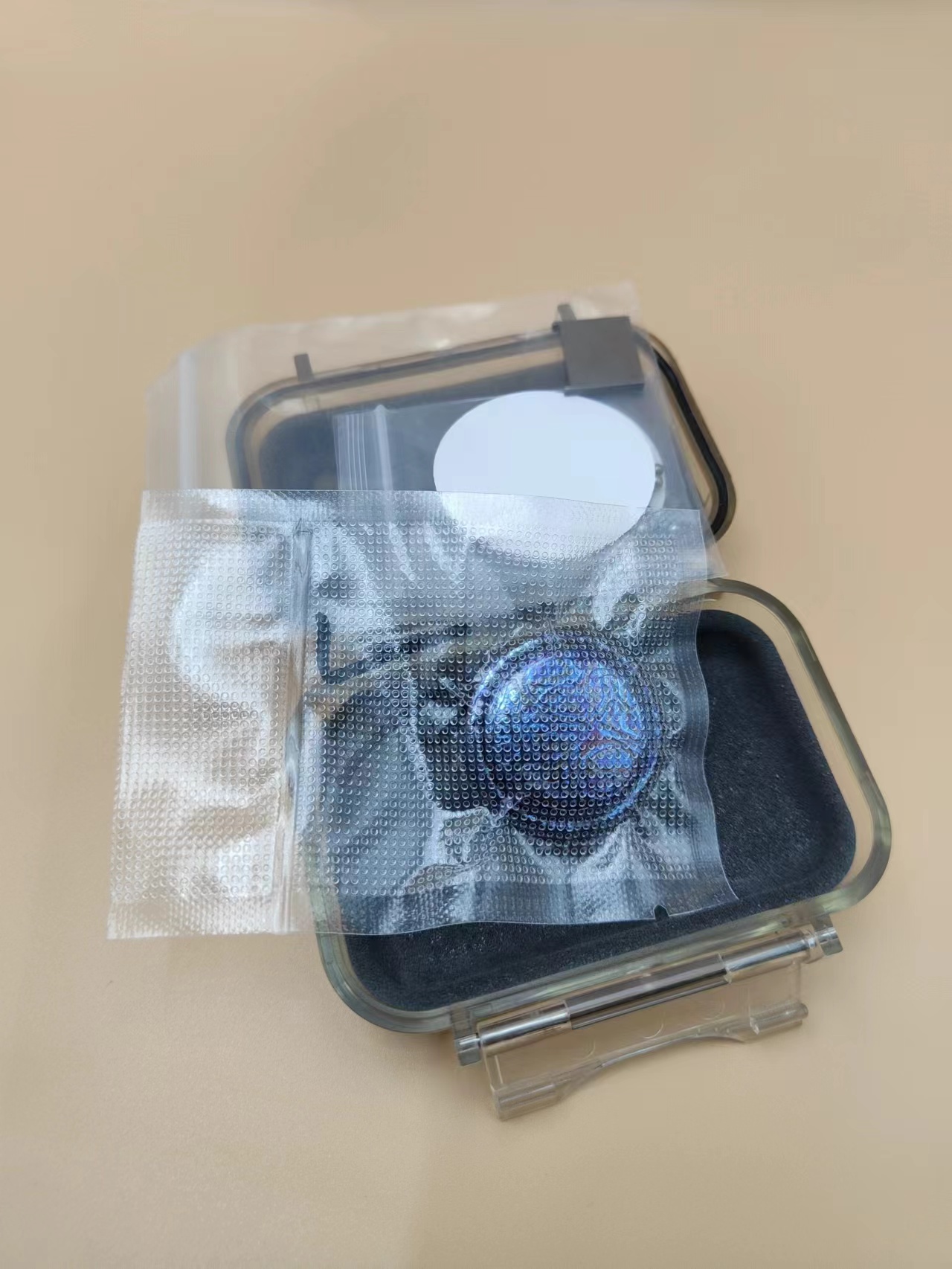

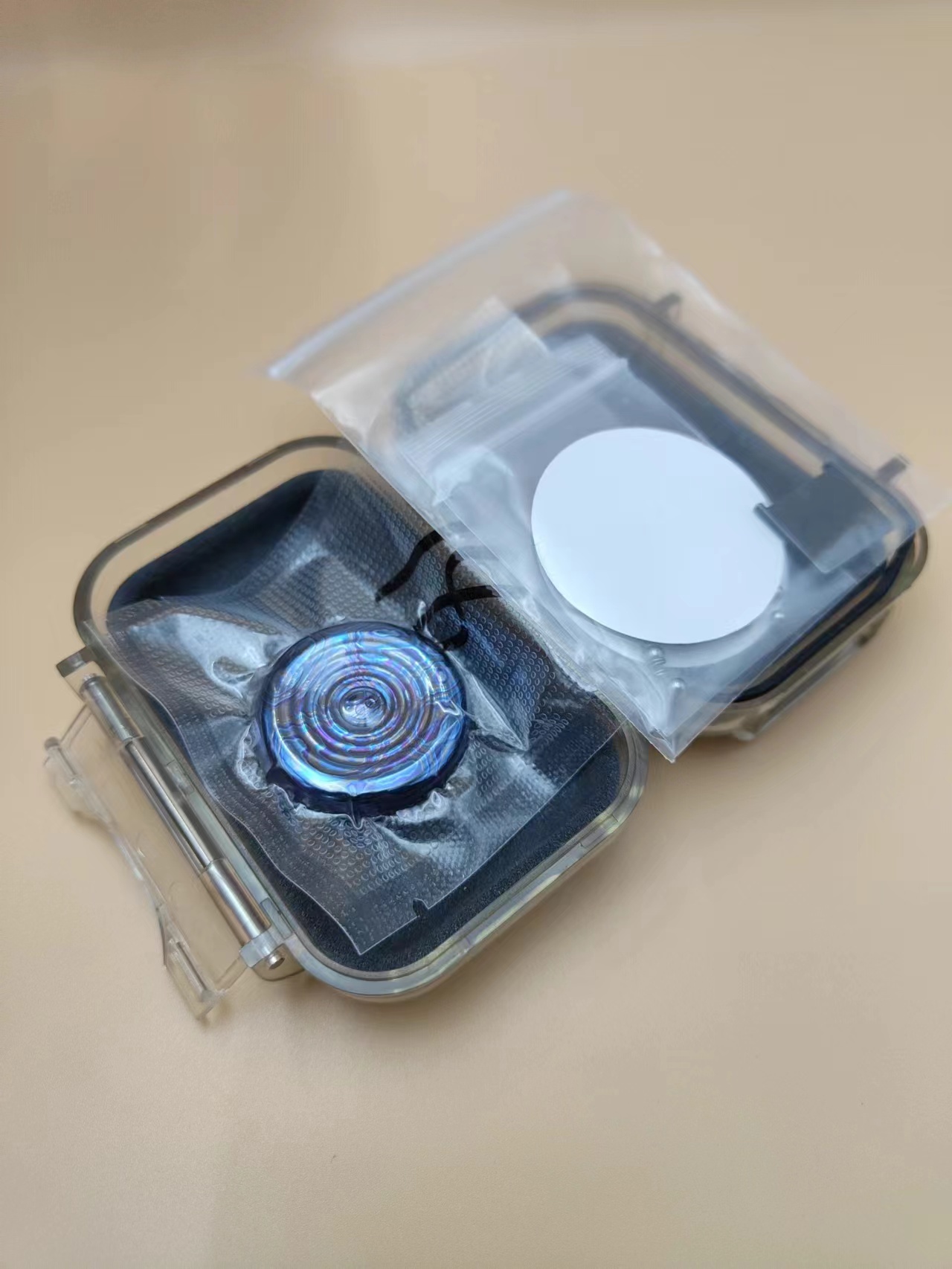

Packaging List：
Product body*1

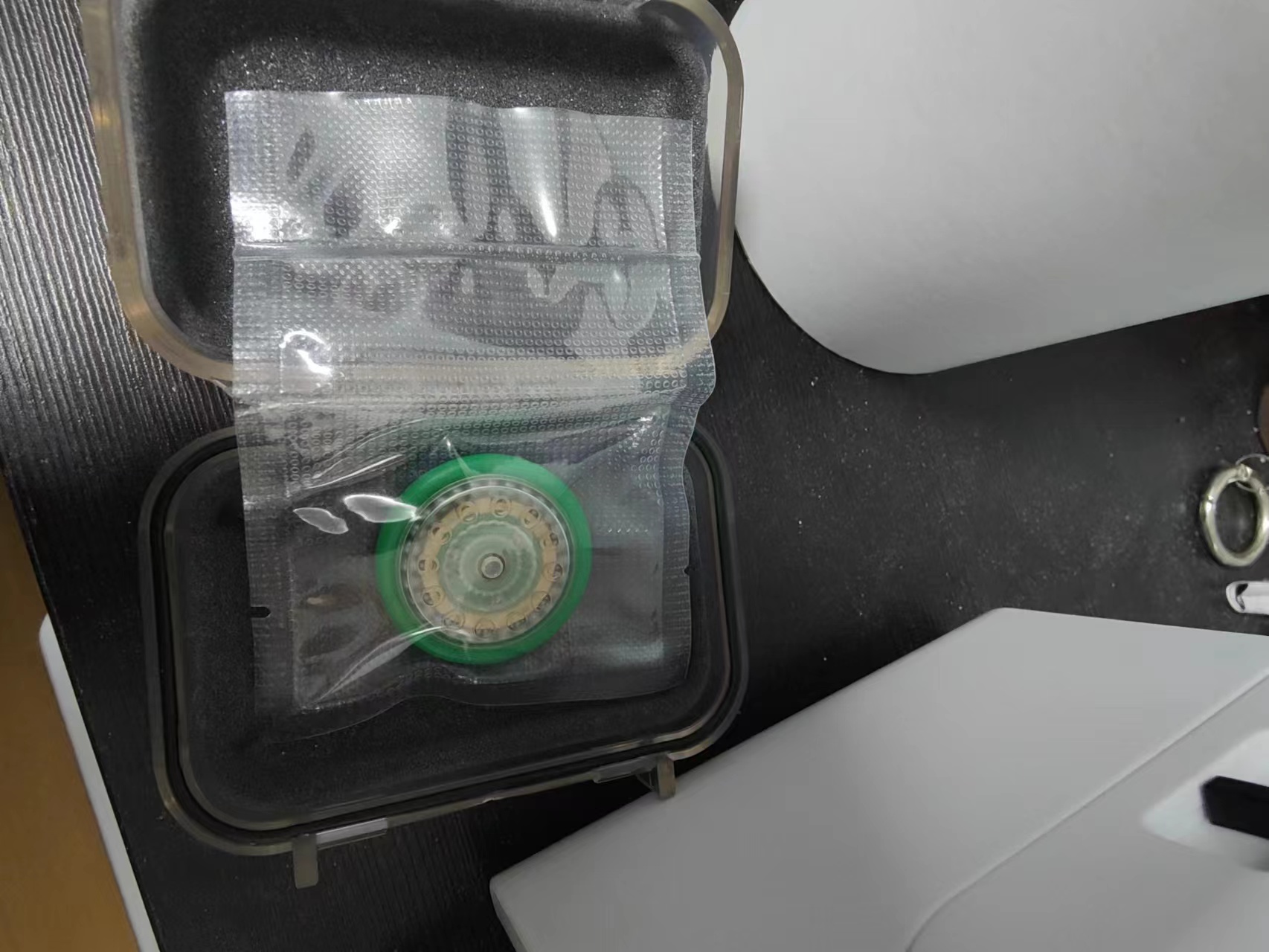

EDC Portable Box*1
some stickers
Several accessories
